FOUR SIDE MOULDER QMB723GH
Introduction:

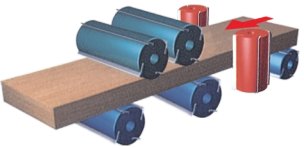

Professional solution: four-side planing, fit for finger joint, wood-line factory, high efficiency and mass production.
φ50mm cutterspindle, equipped with jointer for sharpening the cutter blades,outboard bearing support for horizontal spindles, touch screen control,auto width setting and thickness setting.
Inquire Now
Product Details
| Specifications | QMB723GH | |
| Working width | mm | 20~230 |
| Working thickness | mm | 10~160（选配230） |
| Min.working length (Intermitent\continuous) | mm | 720\280 |
| Dia.of spindle | mm | Φ50 |
| Dia.of feeding roller | mm | Φ140 |
| Feeding speed | m/min | 10~60 |
| Rotation speed of spindle | r/min | 7000 |
| Cutter dia.First bottom cutter | mm | Φ140~ Φ180 |
| Left/Right vertical cutter | mm | Φ140~ Φ250 |
| The first upper cutter | mm | Φ140~ Φ250 |
| The second upper cutter | mm | Φ140~ Φ250 |
| Back bottom cutter | mm | Φ140~ Φ250 |
| Universal spindle | mm | \ |
| Total power | kW\HP | 106.2\142 |
| The first bottom cutter | kW\HP | 11\15 |
| Left vertical cutter | kW\HP | 15\20 |
| Right vertical cutter | kW\HP | 11\15 |
| The first upper cutter | kW\HP | 15\20 |
| The second upper cutter | kW\HP | 15\20 |
| The second bottom cutter | kW\HP | 15\20 |
| Universal spindle | kW\HP | \ |
| Feeding motor | kW\HP | 11\15 |
| Beam lifting motor | kW\HP | 1.1\1.5 |
| Upper cutter lifting motor | kW\HP | 0.75\1 |
| Radial adjustment of the vertical spindle | kW\HP | 0.37\0.5 |
| Rear pressing plate elevation | kW\HP | \ |
| Side feeding motor | kW\HP | \ |
| Belt conveyor | kW\HP | \ |
| Disc conveyor | kW\HP | \ |
| Suction hood Dia | mm | 7xΦ180 |
| Air supply pressure | Mpa | 0.6 |
| Overall dimensions | mm | 5660x2100x1900 |
| Weight | kg | 8800 |
